Snowflake Integration Overview

While most of Ubiq’s libraries integrate at the “application” layer, not all use-cases and sensitive data is accessed through an application. Especially in data-focused roles and use-cases such as big data analytics where report writers, data analysts, data scientists, and even data pipelines might need to be able to encrypt and decrypt data. This overview focuses specifically on how the Snowflake library works and how to use it, but the concepts will apply to other data warehouse or database-specific libraries Ubiq makes available.

How does Ubiq Work on Snowflake?

For some background, our whitepaper gets into the nitty gritty on how Ubiq works when integrated into an application, and the Snowflake library works just the same… but without the need for an application 🙂

The only traffic pattern difference is the introduction of a cloud-specific API Gateway that Snowflake requires to access external resources:

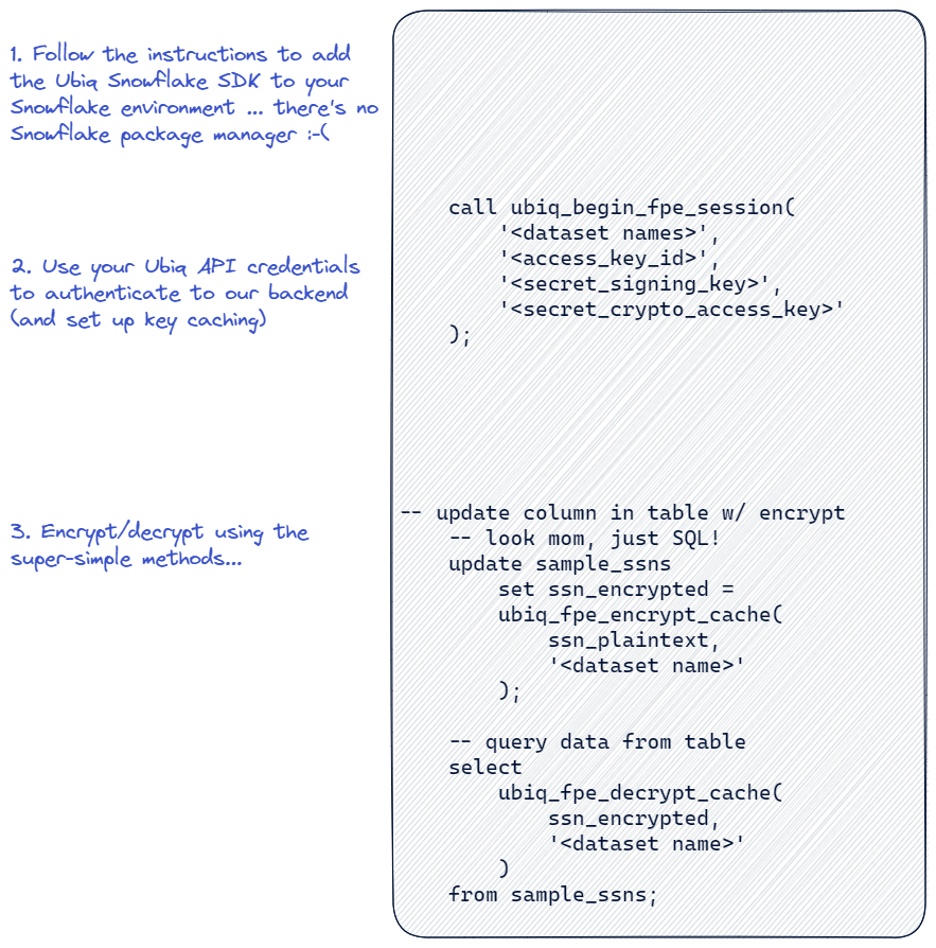

To use the Ubiq Snowflake library, the implementation is done directly in SQL. Integration instructions are available in our public docs as you’d expect here, and once you’re ready you use it, you use the same, simple code just like our other libraries:

Using with Visualization Tools on Top of Snowflake

Once you have the power to encrypt/decrypt at the SQL level, you can leverage that from any tool that’s accessing your data in Snowflake. Take, for example, the scenario where you have data encrypted with Ubiq in Snowflake and you don’t want a DBA that’s querying data to be able to see it, but you have a report in Tableau or PowerBI or some other visualization tool that needs to show the data decrypted in plain text.

Your data flow might look something like this:

Where your data is exposed through the entire ETL and reporting flow:

  • Stored in plain text in Snowflake
  • Shown in plain text when a Snowflake user or DBA queries it
  • Retrieved in plain text from the reporting / visualization tool
  • Shown in plain text on a report to all users

Once data is encrypted in Snowflake itself, however, you can choose where to expose (or not) the plain text data anywhere that it is queried. In this example, we would choose not to allow a DBA or regular Snowflake user to decrypt our SSNs, and we also will choose not to expose SSNs by default in any existing reports. But we can then choose to create a report that explicitly decrypts and shows that sensitive data.

Snowflake vs. Other Ubiq Libraries

It’s all the same - the Snowflake library and its encrypt/decrypt is completely cross-compatible with all of the other libraries and languages.

All of the same features and values still hold true for using Ubiq on Snowflake:

  • Data never leaves your environment to encrypt or decrypt data
  • No changes needed to your Snowflake schema to store data encrypted vs. plaintext
  • Data is encrypted before it gets persisted - so access from anyone else to your data will only see the ciphertext unless they have access to decrypt
  • No key management required - just like our application library usage, keys “follow the data” and are managed in the Ubiq SaaS UI for seamless key rotation and revocation
  • Flexible access controls; Ubiq API keys are used to authenticate the Snowflake user to Ubiq, and that gives them access (or not) to encrypt or decrypt various sets of data
  • Flexible key association - your key and dataset design in the Ubiq SaaS UI can enable granular key usage (like a unique key per table, per column or per Snowflake database) without any implementation complexity - the SQL queries don’t need to change or even know about the keys
  • Cross-library compatibility - our Snowflake library uses the same NIST-approved structured (format-preserving) encryption algorithm, so you can encrypt/decrypt with Snowflake and then encrypt/decrypt with any other Ubiq library

Summary

The Snowflake library works the same way as our application-language-specific libraries:

  • Completely self-contained - no external dependencies in Snowflake
  • No change to your data flow (data never leaves Snowflake to encrypt/decrypt)
  • No encryption knowledge required to implement … simple exposure of anencrypt()_and _decrypt() function (UDF) that is directly callable from SQL
  • Similar performance profile to application-language libraries and similar performance design considerations for authenticating to our backend and key caching
  • Cross-compatible encryption/decryption with every other Ubiq library
  • Total feature parity - including key management and key rotation features delivered and managed through the Ubiq UI
